The Brother Luminaire 2 XP2 is a top-tier sewing, quilting, and embroidery machine aimed at advanced users and serious hobbyists. It sits in Brother’s Innov-is flagship range and is known for its projector tech, large work area, and a touchscreen that feels closer to a tablet than an old sewing LCD. If you want an all-in-one at the high end, there is a lot here to work with.
Pricing is dealer-driven in the US and often runs well into five figures depending on package and promotions. Check with an authorized dealer for the current dollar price.
Features
The headline feature is StitchVision: a built-in projector that previews embroidery and decorative stitches on the fabric before you sew. That cuts placement guesswork. Around it, the XP2 is fully equipped for sewing and quilting, so it is meant as one main machine rather than embroidery-only.

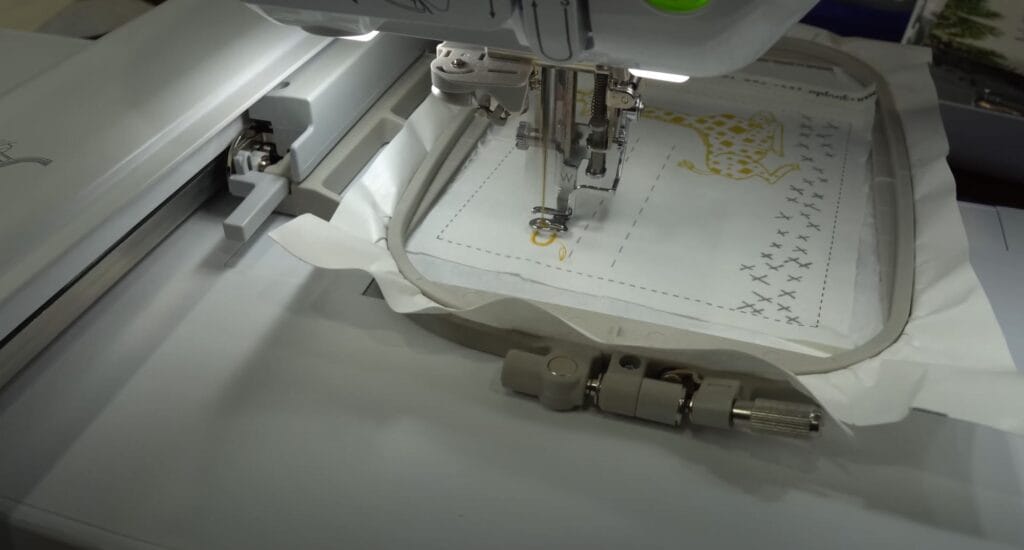

Embroidery area and sewing space
Maximum embroidery area is 10 5/8″ x 16″ (about 272 x 408 mm), one of Brother’s largest frames, with well over 169 square inches of field. Included hoops typically cover that large frame plus 10 5/8″ square, 5″ x 7″, and 4″ x 4″. The large hoop uses a metal-reinforced, rubber-gripped frame and a spring-release clamp system that helps with thicker materials.
Needle-to-arm space is about 13.1″ (around 333 mm), with roughly 65 square inches of bed workspace for quilts and large garments. The bed has a scratch-resistant finish and bright lighting. You can switch between sewing and embroidery without clearing the project off the machine, which saves time on mixed sessions. Unit weight is about 43 lb (19.6 kg).
Stitches, designs, and screen
Built-ins include over 1,300 embroidery designs (including 192 Disney designs on the US package), 24 embroidery fonts, and a large sewing stitch library (utility plus hundreds of decorative options, including Disney sewing stitches on the US model). Lettering supports layout, arc, and alignment changes, plus oversized monogram styles. Max sewing and embroidery speeds are listed up to about 1,050 stitches per minute.

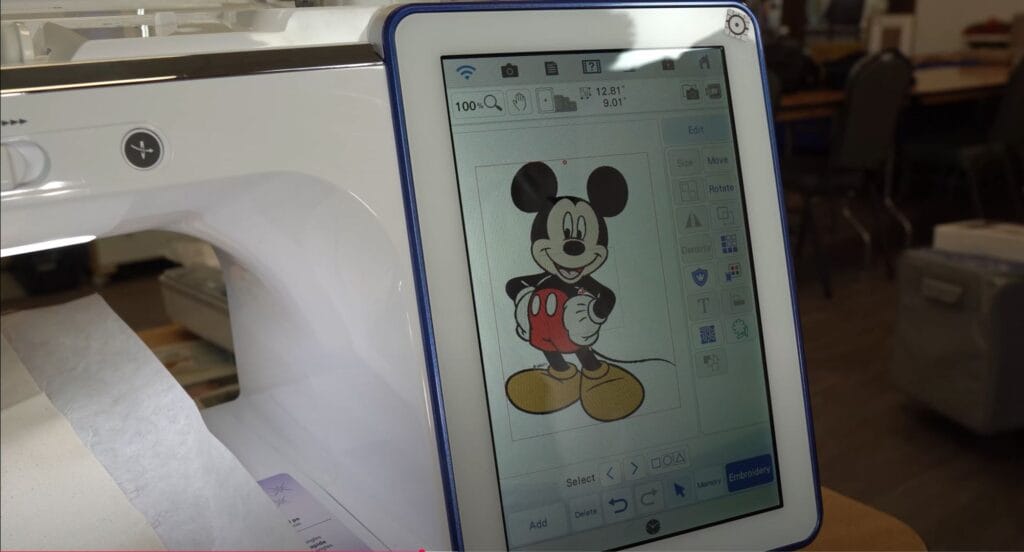

The 10.1″ HD capacitive LCD touchscreen is the control center: bright, responsive, and detailed enough that designs look clear before you stitch. Combined with the projector, you get a realistic preview on fabric. On-screen editing covers resizing, echo quilting style fills, stippling options, and similar tweaks without bouncing to a computer for every change.
Sensors, dual feed, and projector
Automatic fabric sensing helps the machine adapt tension and presser pressure across denim, sheers, and stretch fabrics such as Lycra or tricot, so you are not resetting everything for every fabric change. MuVit digital dual feed works like a motorized walking system: a belt stays in contact with the fabric and feed rate can be tuned relative to the lower feed dogs, which helps on layers and shifty knits.

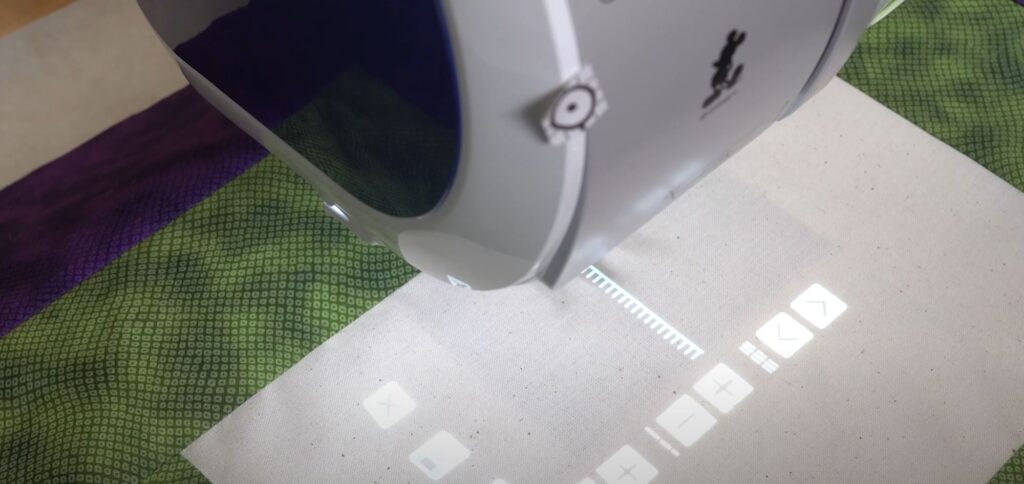

StitchVision projects stitches, designs, and guides (including a quarter-inch style guide for piecing) onto the fabric. It works with a range of feet, not only the standard one, and is one of the features that makes the XP2 feel different from earlier high-end Brothers.
Threading extras and design resize
A portable magnetic thread stand mounts on top when the lid is open and helps larger spools unwind cleanly, which reduces breaks on long embroidery runs. Push-button automatic needle threading is reliable and matters when you change colors often.
When you resize a design, the XP2 can recalculate stitch density so quality holds better than simple stretch scaling. Scale a design up and stitch count rises; scale it down and the machine trims density accordingly. That helps when you adapt one motif to different hoop sizes.
Setup
Out of the box you typically get four embroidery hoops, a large set of sewing and embroidery feet (around 16 types), straight-stitch needle plates, a custom accessory case, an adjustable knee lifter, and a dual-spool / portable thread stand setup. That covers most day-one sewing and embroidery needs. Optional accessories expand further; Brother lists them on the XP2 accessories page.
Expect a learning curve. The touchscreen and projector make placement easier, but wireless apps, scanning features, and embroidery editing take practice. Built-in tutorials help, and dealer training is worth taking if your purchase includes it.
Performance
In use, the XP2’s value is how the big features work together: projector placement, dual feed on tricky layers, automatic fabric response, and a huge embroidery field for large single-run designs. Stitch quality is clean and consistent across the built-in library, and monogramming has more layout control than mid-range combo machines.
This is a heavy, large machine. It wants a dedicated table space and is not a grab-and-go class machine. For advanced embroidery, Quiltbroidery-style work, and precision sewing, that tradeoff is the point.
Strengths and limitations
Strengths
- StitchVision projector for placement and seam guides
- Very large embroidery field (10 5/8″ x 16″ / 272 x 408 mm) and about 13.1″ of sewing space
- Huge built-in design and stitch libraries, including Disney content on the US model
- 10.1″ touchscreen, MuVit dual feed, fabric sensing, and smart design resize
- Generous accessory kit out of the box
Limitations
- Premium dealer pricing that is hard to justify for casual sewing
- Large footprint and about 43 lb (19.6 kg) to place and move
- Feature depth needs time (and often dealer support) to use well
- Optional accessories and software extras can add more cost
Who it is best for
Best for advanced embroiderers, quilters, and sewists who want one flagship machine and will actually use projection, large hoops, and dual feed. Skip it if you sew occasionally, work in a tiny space, or mainly need basic garment seams. A mid-range combo machine will serve that use case for far less money.
Manuals, warranty, and registration
Manuals: Search your exact model on Brother Support or Brother USA Support for the Operation Manual and Quick Reference Guide (or Sewing Guide).
US: US limited warranty periods vary by model (often a long chassis period with shorter coverage for electronics and labor). Register at Brother USA product registration. Keep your dated receipt.
UK / EU: See the Brother Sewing & Craft warranty page and register at sewingcraft.brother.eu product registration. UK Brother Online: atyourside.brother.co.uk/register-your-device.
Official site: Brother USA.
Verdict
The Brother Luminaire 2 XP2 is a powerful, high-tech machine that balances precision, usability, and versatility at the top of Brother’s home range. The large embroidery area, dual feed, bright touchscreen, and built-in projector are not gimmicks when you use them together; they streamline advanced sewing and embroidery. It is built to support quilting, custom garments, and intricate embroidery if you are ready for that level of machine.
